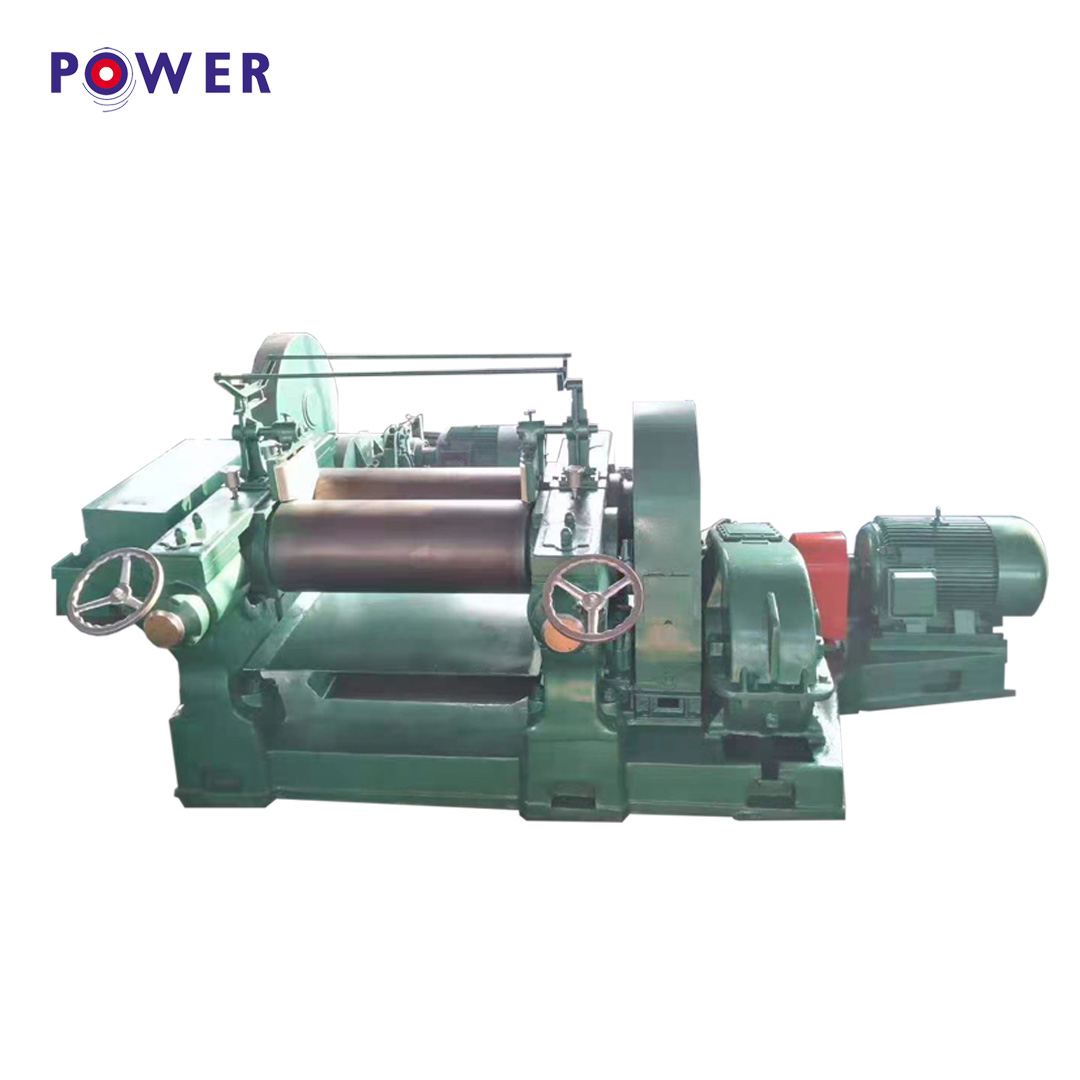

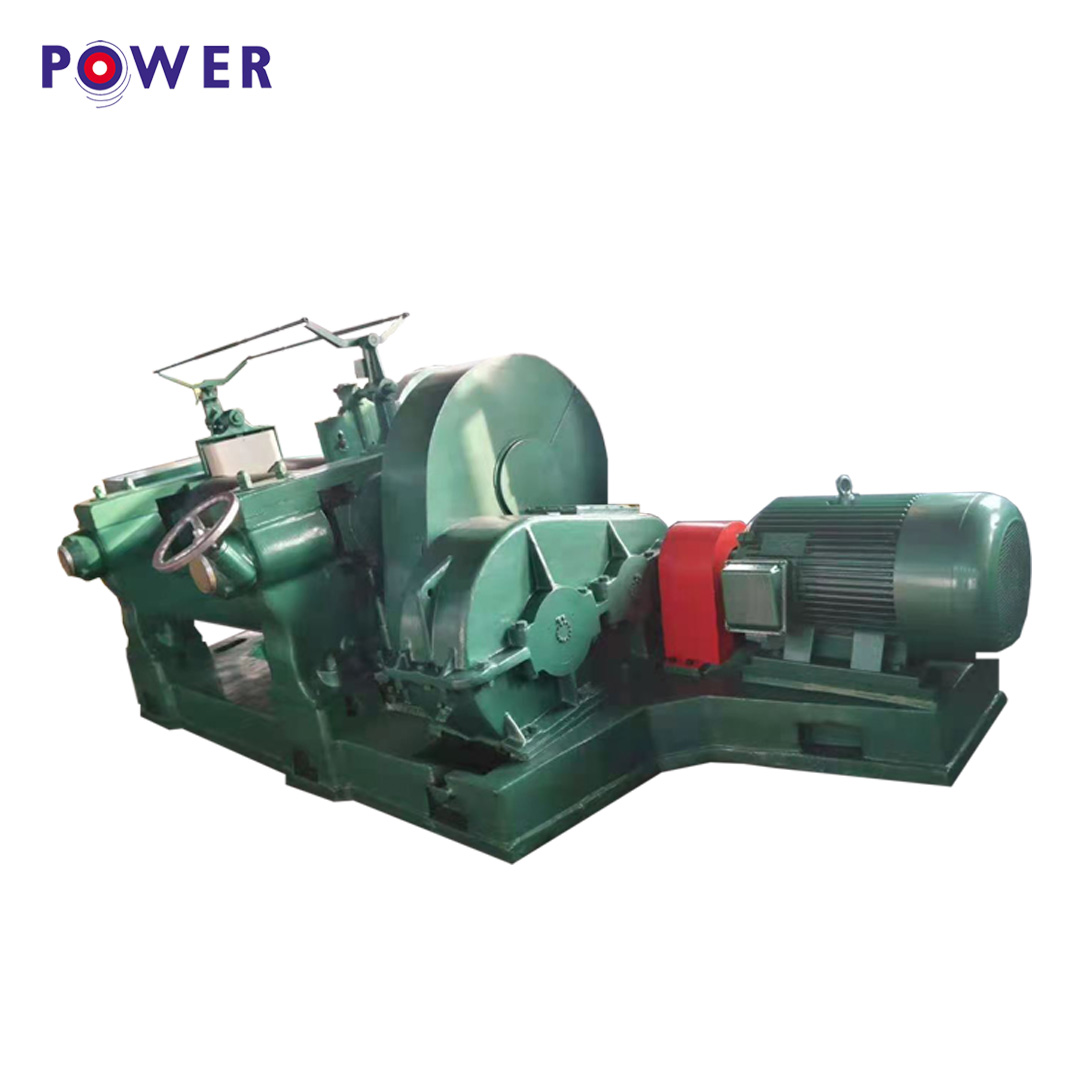

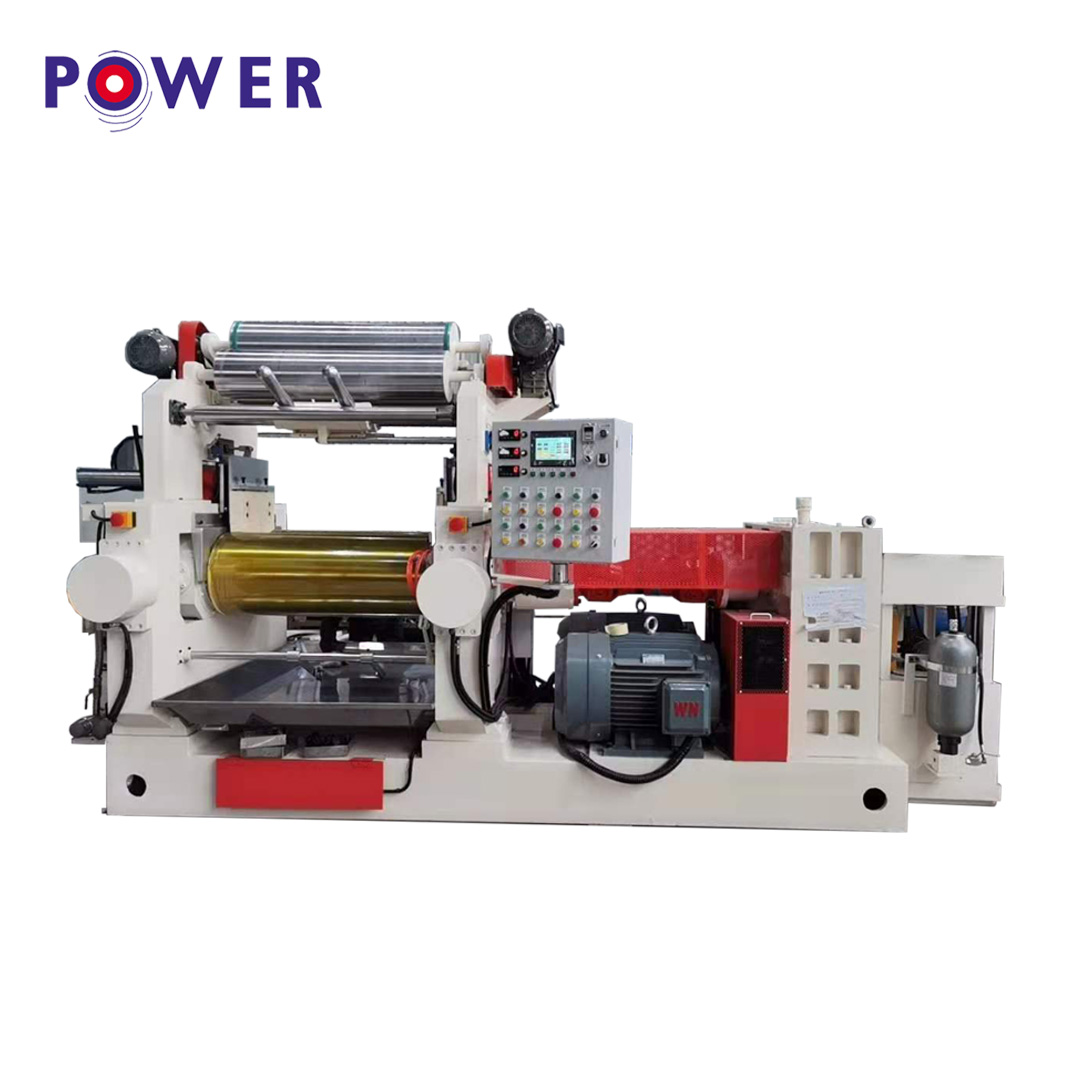

Rubber Mixing Mill Two Motors

Product Feature:

1. Made of high quality material

2. Easy installation directly on plain ground

3. Enforce cycle cooling system

4. Safe and efficient

Contact Now

Product Details

Product Description:

1. Enhance the intensity of the rubber open mixer machine body by using more carbon steel and less wrought iron.

2. The rubber open mixing mill can be placed on the plain ground directly, other installation method is unnecessary.

3. The roller bearing supports the heavy loading and high temperature. Using roll bearing double the size and use less lubrication oil, able to use longer and easy to maintain.

4. All the parts of the machine are processed by rust proofing with chromium, to prevent the key parts polluted.

5. Enforce cycle cooling system, enhance the cooling effect by using spin joint and enlarge pipe.

6. Using energizing mechanic power off system, guarantee the well and speedy function under the long term using.

Model	φ14"	φ16"	φ18"
Roll Size (D/L)	360*920	400*1060	450*1200
Linear Speed (M/Min)	23.7	20.65	23.22
Front Roll RPM	4-20	4-20	4-20
Roll Ratio (Front/Back)	Free Adjustment	Free Adjustment	Free Adjustment
Produce Weight(Once)	20-25 KG	25-35 KG	30-50 KG
Motor Power	15KW X 2 Sets*	30KW X 2 Sets*	37KW X 2 Sets*
Weight (KG)	5800	8000	12800
Dimensions (LXWXH)	370014251870	400015001870	456016702020
Bush	Bearing Type	Bearing Type	Bearing Type
Receiver Material	Stainless Steel	Stainless Steel	Stainless Steel
Cooling Mode	Pressurized Cooling Rotating Joint
Emergency Stop	Press Button Brake & Foot Brake
Transmission	Low Noise Gear Box Gear
* Motor Power can be customized by different material requirements.

Model	φ22"	φ24"	φ26"
Roll Size (D/L)	55*1530	610*1830	660*2130
Linear Speed (M/Min)	28.29	31.6	34.2
Front Roll RPM	4-20	4-20	4-20
Roll Ratio (Front/Back)	Free Adjustment	Free Adjustment	Free Adjustment
Produce Weight(Once)	50-60 KG	120-130 KG	160-170 KG
Motor Power	75KW X 2 Sets*	15KW X 2 Sets*	15KW X 2 Sets*
Weight (KG)	18500	25500	32000
Dimensions (LXWXH)	537019502200	610020502200	624033502670
Bush	Bearing Type	Bearing Type	Bearing Type
Receiver Material	Stainless Steel	Stainless Steel	Stainless Steel
Cooling Mode	Pressurized Cooling Rotating Joint
Emergency Stop	Press Button Brake & Foot Brake
Transmission	Low Noise Gear Box Gear
* Motor Power can be customized by different material requirements.
