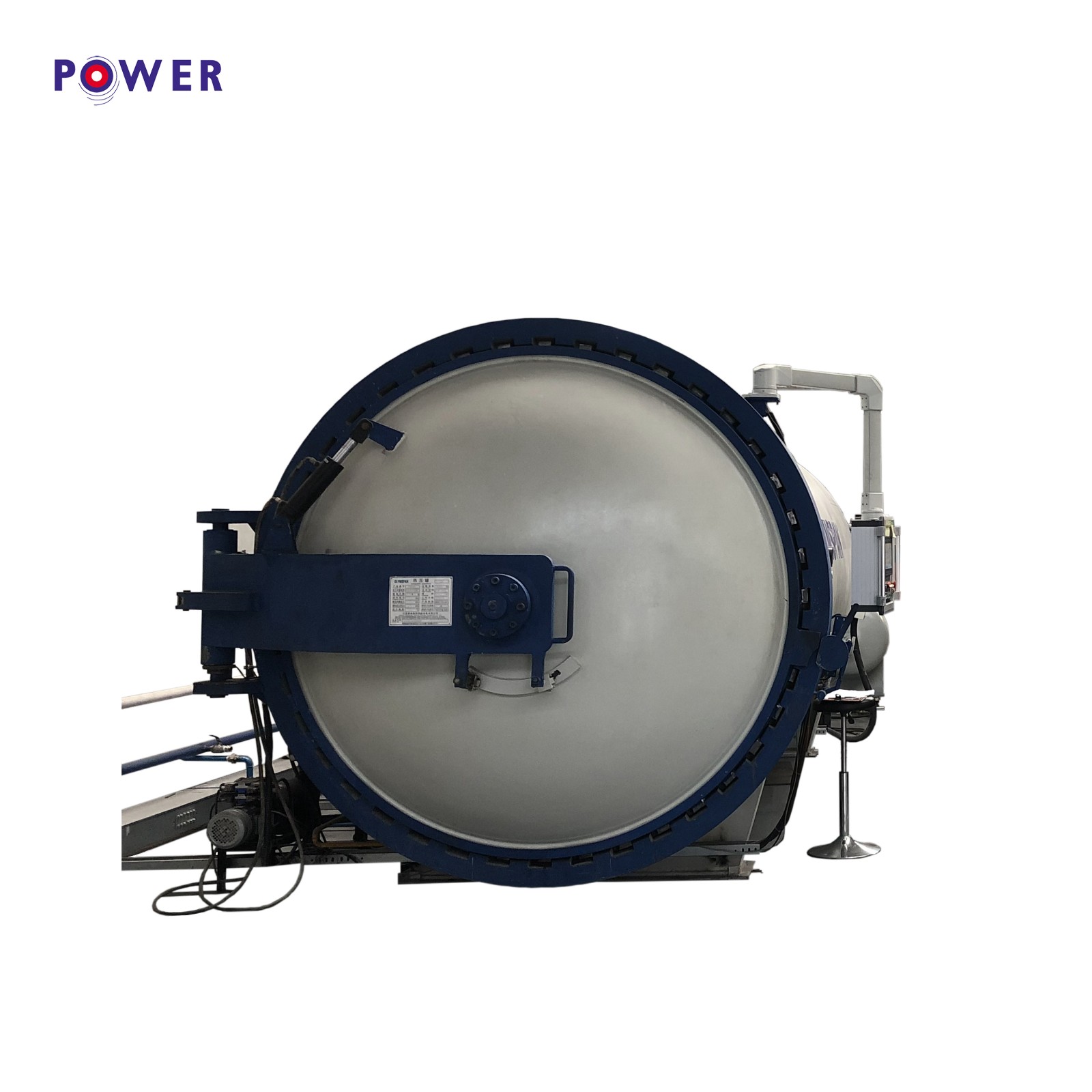

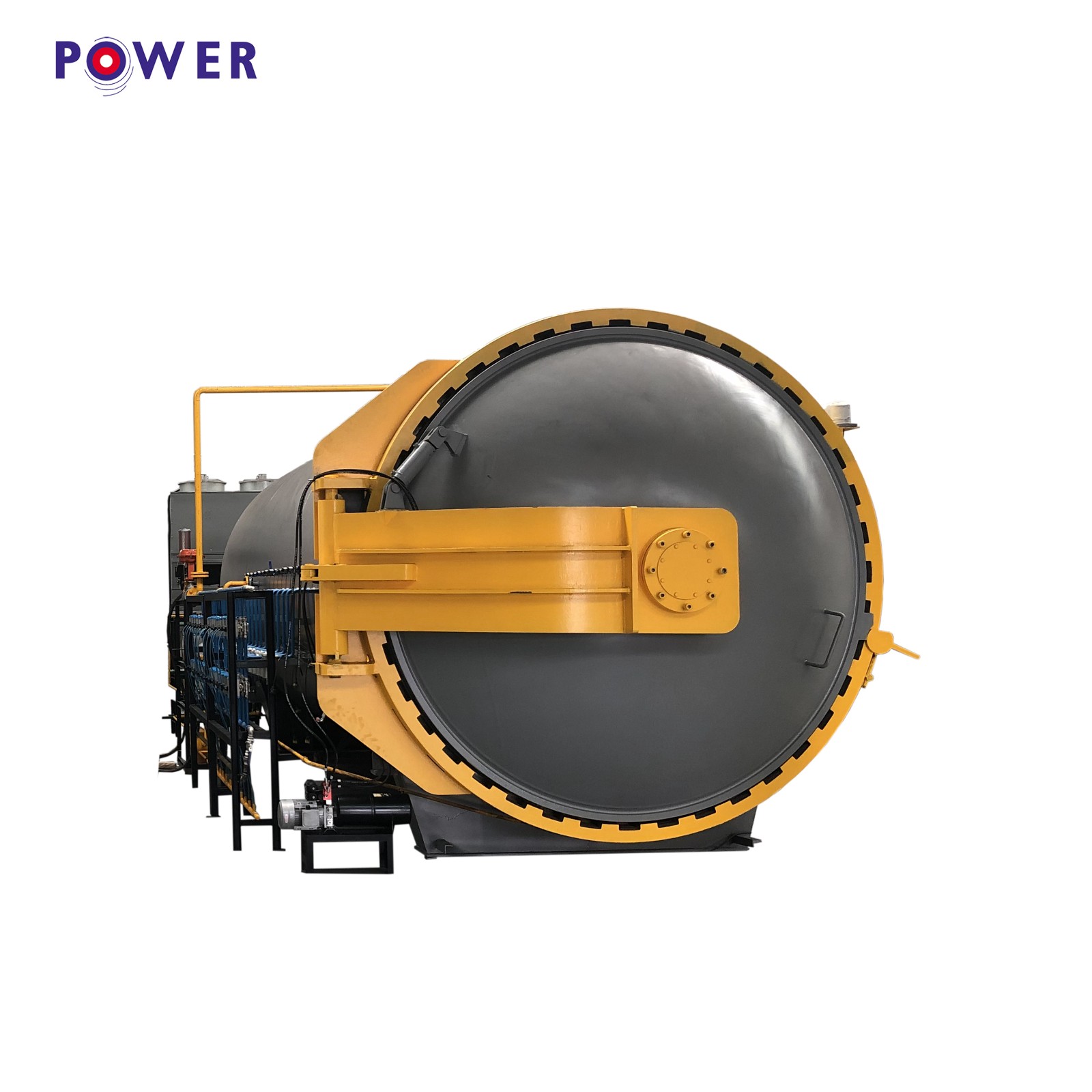

Rubber Steam Heating Type Autoclave

Feature:

1. Composed of five main systems: hydraulic system, air pressure system, vacuum system, steam system and automatic control system.

2. Triple interlock protection ensures the safety.

3. 100% X-ray inspection to ensure product quality.

4. Fully automatic control, accurate temperature control and pressure, energy saving.

Product Description:

1. Hydraulic system of vulcanizing tank: cover closing, cover locking and other actions in the operation of vulcanizing tank are completed by the hydraulic system. Hydraulic system includes relevant control valve, hydraulic control check valve, oil cylinder, etc., excluding oil pump. The design of hydraulic system meets the requirements of driving force and speed.

2. Compressed air system of vulcanizing tank: the main function of compressed air system is to provide the power of pneumatic control valve and pneumatic cut-off valve. The air source is depressurized by a set of filter and pressure reducing purification device. Copper pipe is used for pipeline connection.

3. Steam pipeline system: the steam pipeline system shall refer to the drawings design and configuration provided by the manufacturer. The pipeline layout is reasonable, beautiful and convenient for operation and maintenance. Reliable pipeline connection.

4. Vacuum system of vulcanizing tank: used to control the vacuum absorption.

5. Control system: semi-automatic or full-automatic control system, including temperature control, pressure control, etc.

Packaging & Shipping

Automatic Rubber Roller Coating Machine Packing details:

1. Outside package: Standard export wooden cases

2. Inner package: Stretch film

Shipping detail:

  Within 2-4 weeks

Shipping photos：
