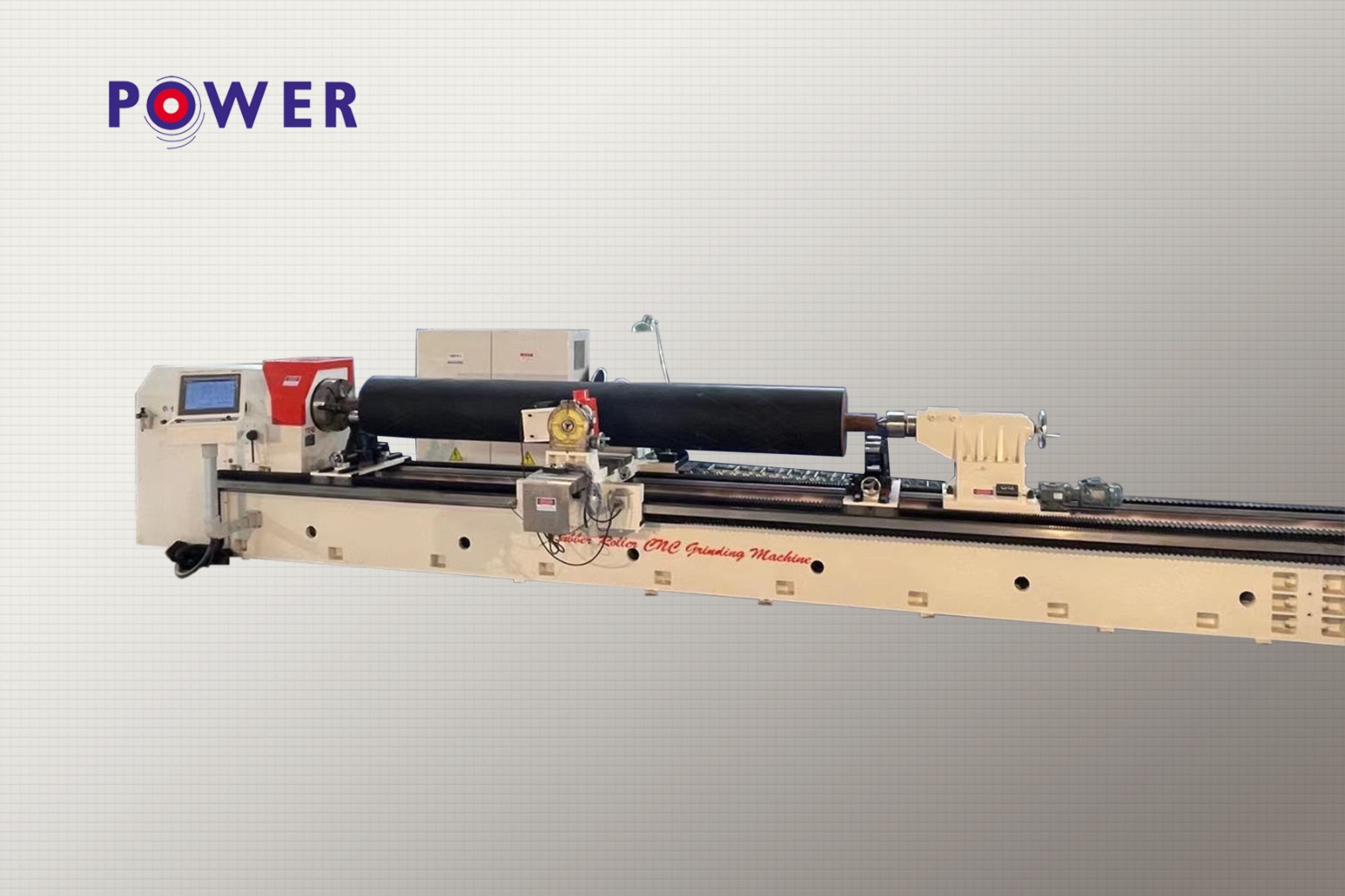

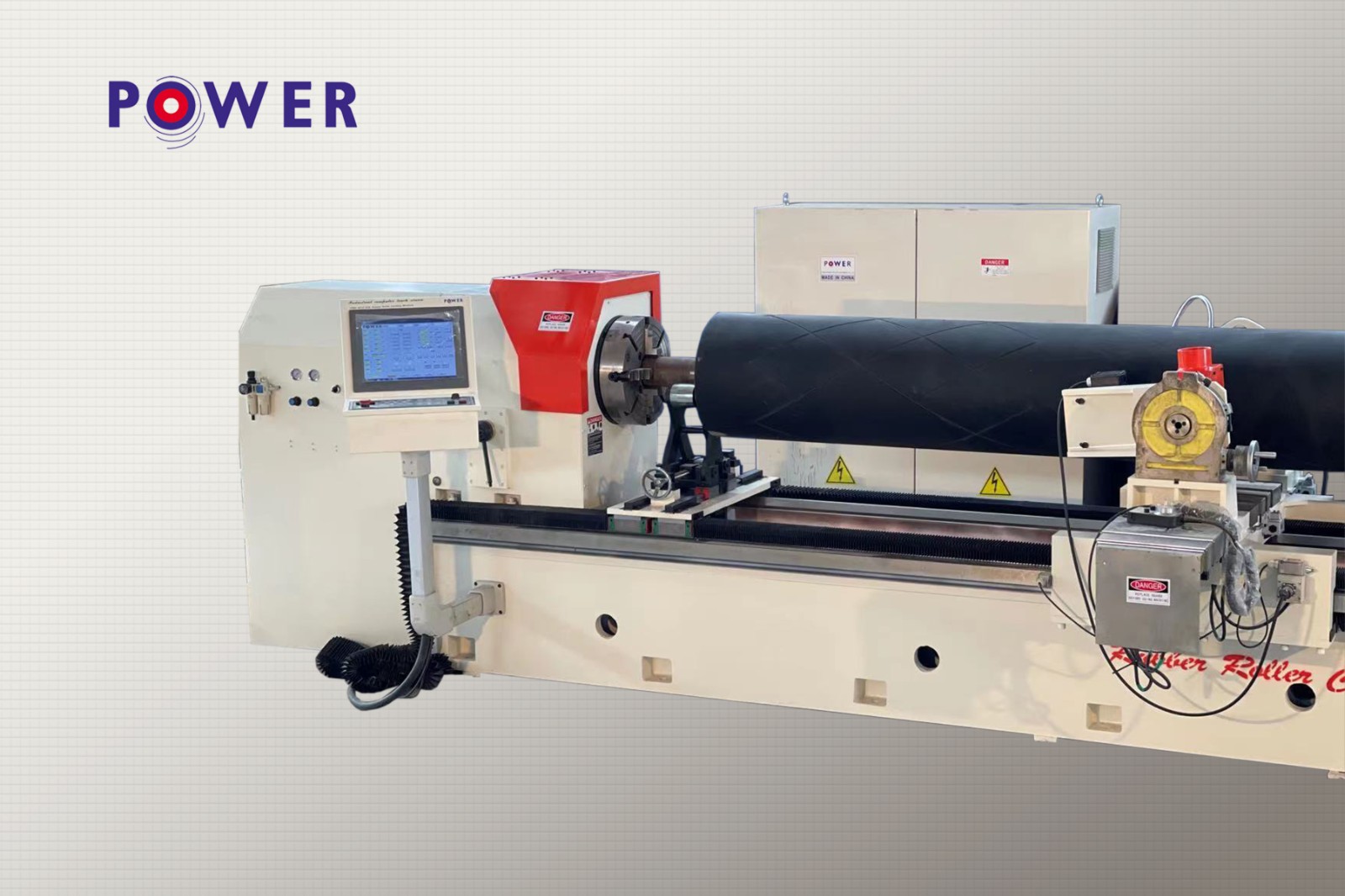

Grinding Machine for Rubber Roller Processing

Payment Type: L/C,T/T,Money Gram,Western Union

Incoterm: FOB,CFR,CIF,EXW

Min. Order: 1 Set/Sets

Delivery Time: 40 Days

Transportation: Ocean

Product Details

PSM series grinding machine for rubber roller processing is specially designed and manufactured to replace the past roller processing method by metallic manufacturing equipment. Mounted grinding head on the engine lathe is the past method to manufacture roller, which the quality of roller is difficult to reach the requirement of the present standard. The main reason lies in the structure of lathe. After all, it is not the grinding machine; the moving spaces of the big and medium carriage table are larger than that of grinding machine. Therefore, vibration may be produced while in the grinding processing, which will generate ripple at the surface of processing rollers. Further, due to the width limit of the guide-rail of lathe, the way of mounted grinding head is hardly to ensure the stability while in operation.

1. Standard equipment of PSM series includes:
a. a full flood recirculating coolant system
b. motorized tailstock
c. variable speed traverse and spindle drives
d. front and rear independently operated carriage tables
e. a direct drive grinding head mounted on the rear
2. Specially designed to replace the tradtional roller grinding process method.
3. Two medium carriage tables assembled to ensure accurate performance and operating stability.
4. The max. linear speed of grinding head is over 90m/s. Production efficiency is highly increased and the geometric size is guaranteed.
5. Advanced measuring device assembled timely checks the processing datas and provides effective help to control the grinding size.
6. Capable of realizing expansion of processing of special-shaped Rubber Rollers.

MODEL	SPECIFICATION	MAX. DIAMETER	MAX. LENGTH	CUBAGE	POWER
LIGHT SCALE	PSM-4020-CNC	16" 400mm	80" 2000mm	158"63"55" 4m1.6m1.4m	17KW
STANDARD	PSM-8040-CNC	32" 800mm	158" 4000mm	256"71"63" 6.5m1.8m1.6m	22KW
HEAVY DUTY	PSM-1260-CNC	47" 1200mm	236" 6000mm	315"79"71" 8.0m2.0m1.8m	26KW

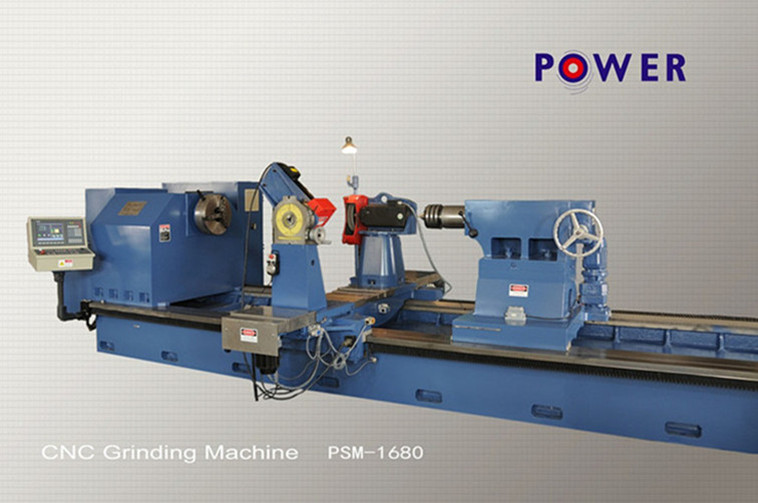

LARGE SCALE	PSM-1680-CNC	63" 1600mm	315" 8000mm	433"95"71" 11m2.4m1.8m	32KW
