CNC Rubber Roller Surface Grinding Machine

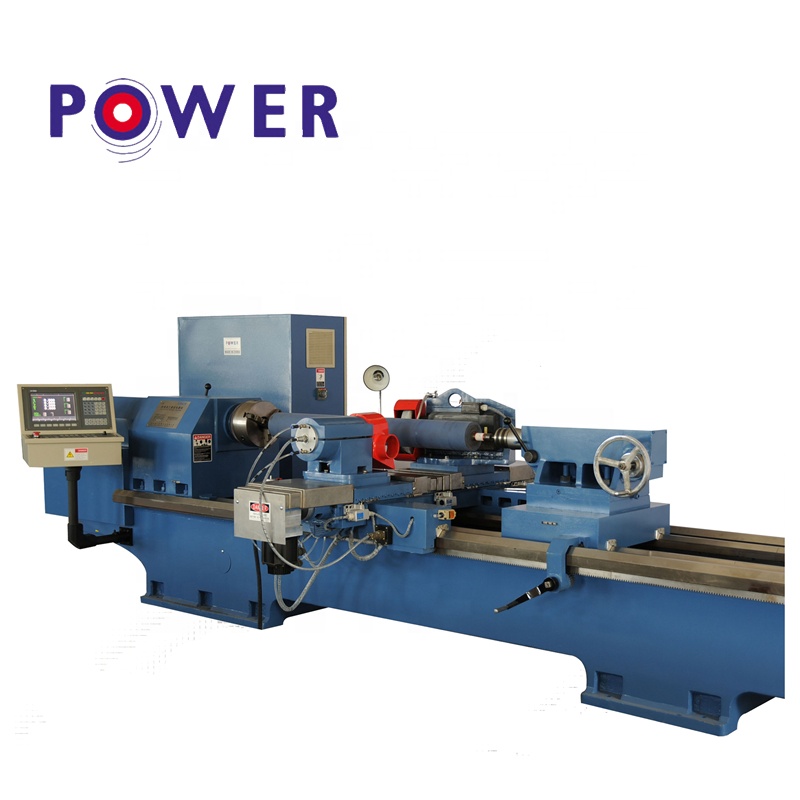

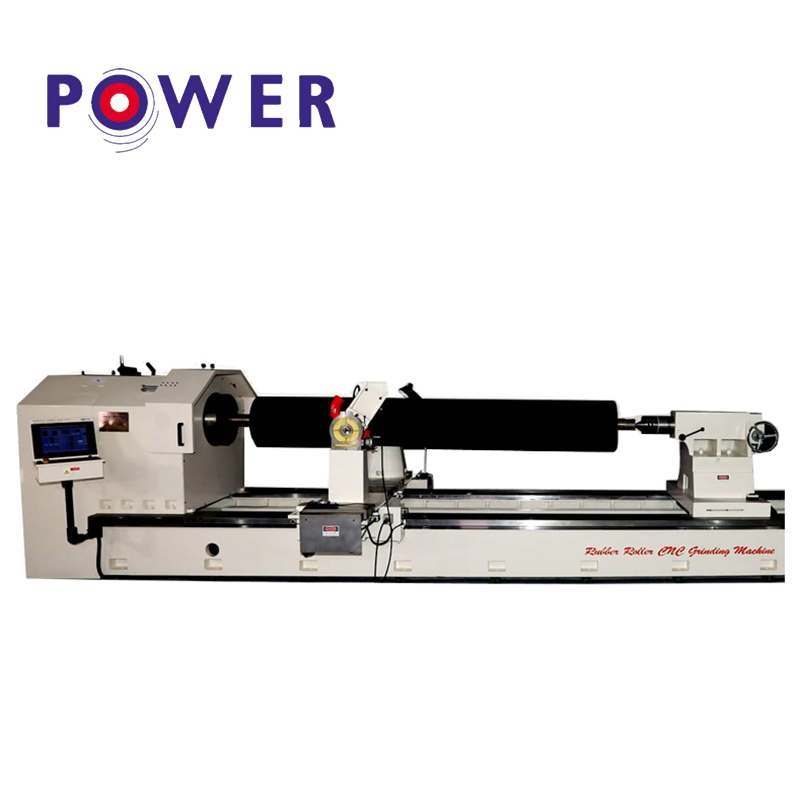

PSM-4020 General Rubber Roller Surface Grinding Machine

PSM series rubber roller grinding system is in particular designed and artificial to update the past roller processing technique with the aid of using manner of steel manufacturing equipment. installation grinding head on the engine lathe is the past technique to manufacture curler, which the superb of curler is tough to gain the requirement of the existing widespread. the number one reason lies withinside the form of lathe. withinside the end, it is not the grinding system; the transferring areas of the huge and medium carriage table are huge than that of grinding device. consequently, vibration can be produced while withinside the grinding processing, which will generate ripple on the ground of processing rollers. further, because of the width restrict of the guide-rail of lathe, the way of installation grinding head is not often to ensure the steadiness whilst in operation.

1. Standard equipment of PSM series includes:

     a. a full flood recirculating coolant system

     b. motorized tailstock

     c. variable speed traverse and spindle drives

     d. front and rear independently operated carriage tables

     e. a direct drive grinding head mounted on the rear

2. Specially designed to replace the tradtional roller grinding process method.

3. Two medium carriage tables assembled to ensure accurate performance and operating stability.

4. The max. linear speed of grinding head is over 90m/s. Production efficiency is highly increased and the geometric size is guaranteed.

5. Advanced measuring device assembled timely checks the processing datas and provides effective help to control the grinding size.

6. Capable of realizing expansion of processing of special-shaped rubber rollers.

Packaging & Shipping

Packing details:

1. Outside package: Standard export wooden cases

2. Inner package: Stretch film

Shipping detail:

Within 2-4 weeks

Equipment video:

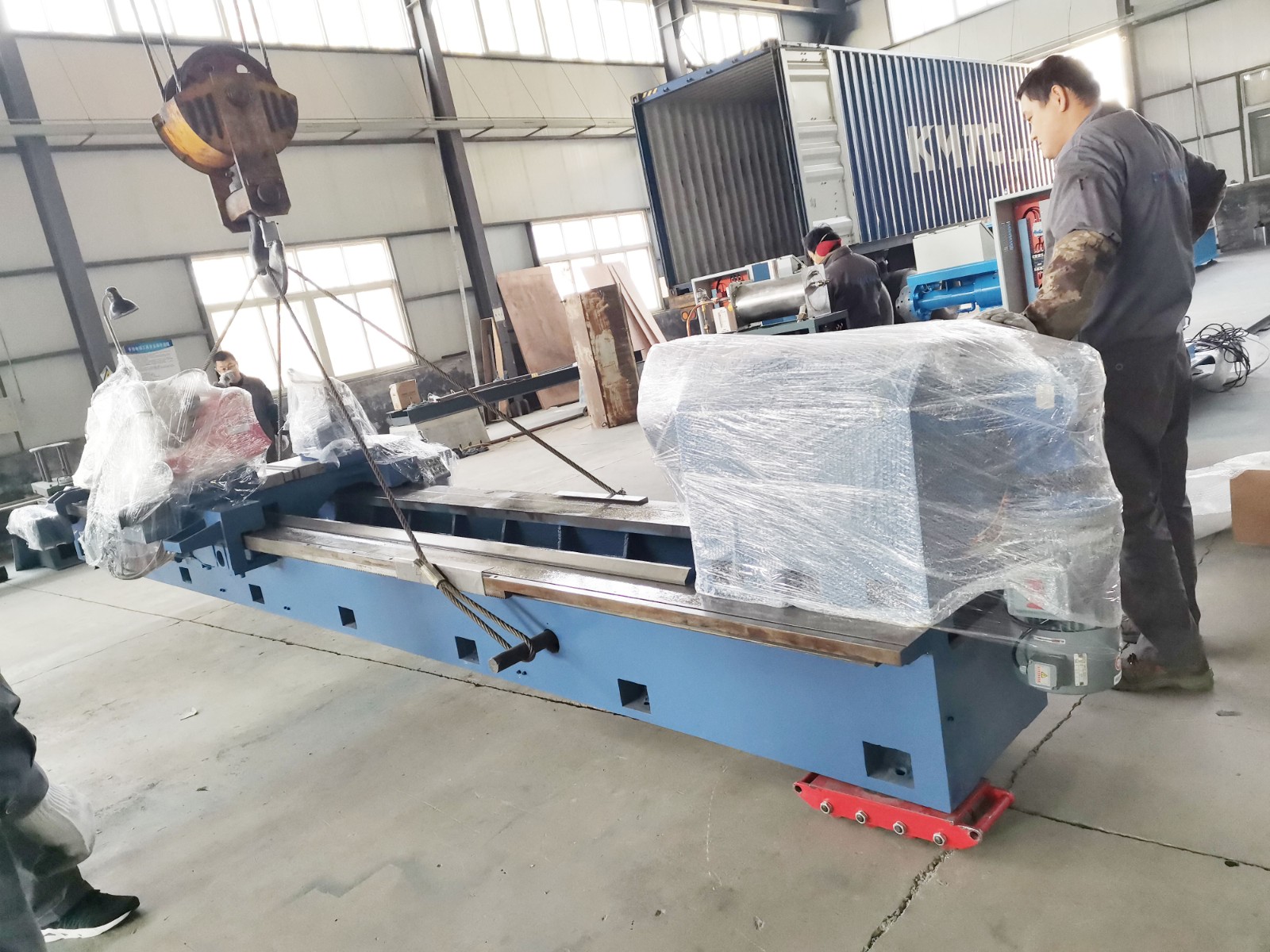

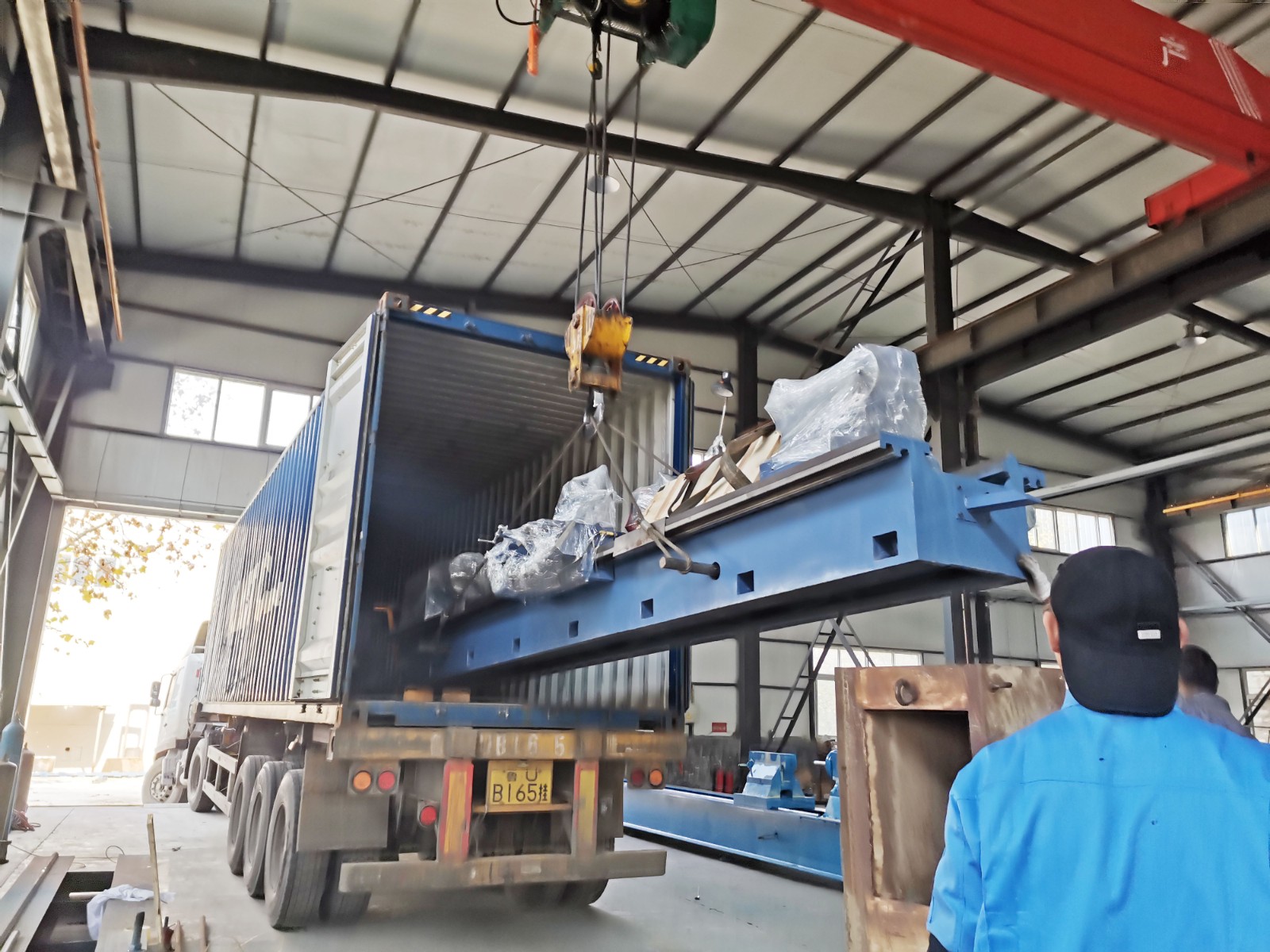

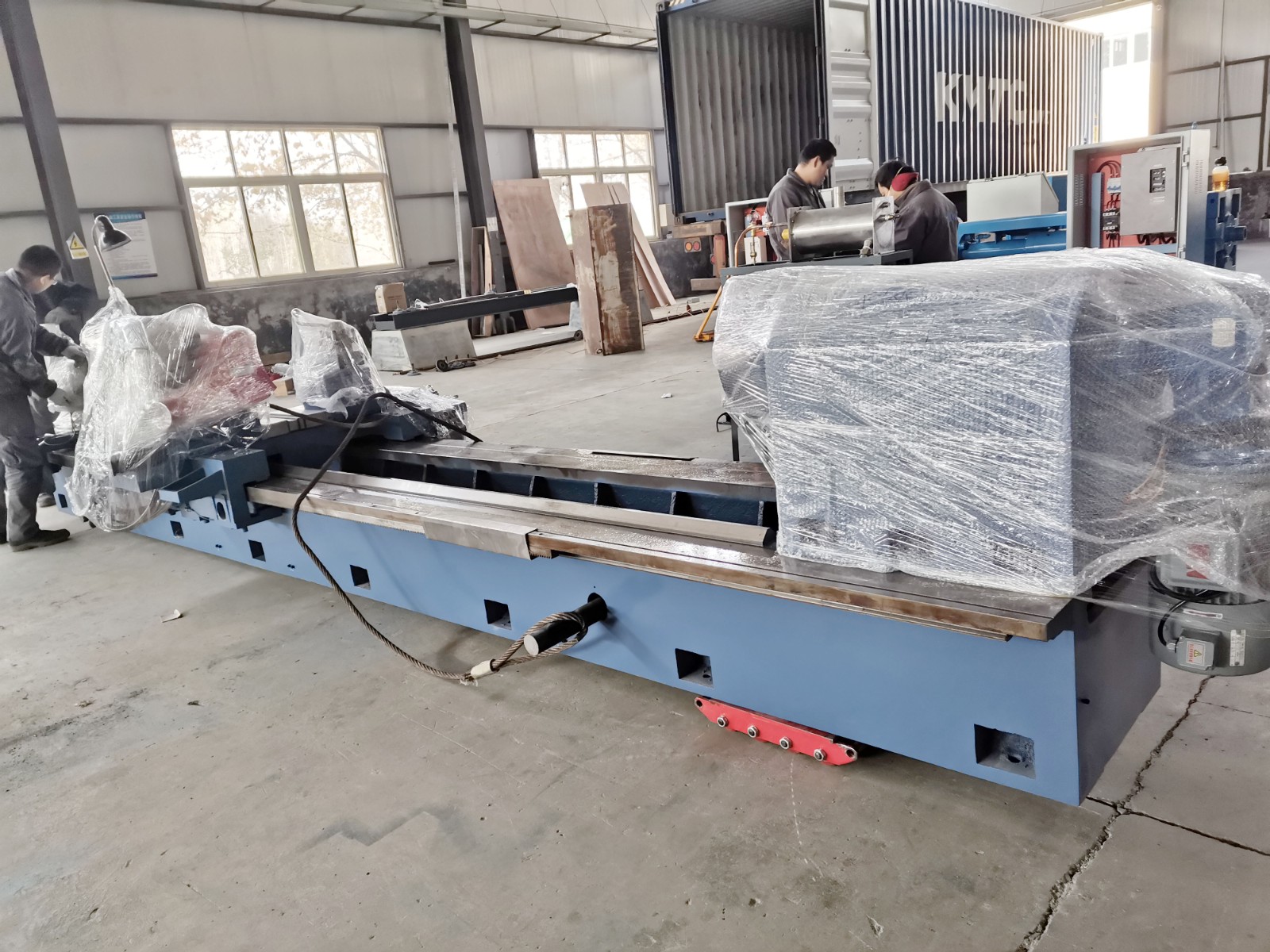

Shipping photos :
