Payment Type: L/C,T/T,Money Gram,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 30 Days
Transportation: Ocean
Product description
1. The PCM-1250 version is appropriate for renewing Industrial Rubber Rollers.
2. Removing vintage rubber through unique ring cutter.
3. Replacing the conventional sand-blasting and solvent washing method through superior belt-grinding method.
4. Perfectly maintaining the unique dynamic stability of the curler core.
5. Giving extra dependable assure for the bonding of the rubber and metallic cores.
6. Saving prices and labors with this stepped forward manufacturing system.
MODEL | SPECIFICATION | MAX. DIAMETER | MAX. LENGTH | CUBAGE | POWER |
LIGHT SCALE | PCM-4030 | 15.7" 400mm | 118" 3000mm | 197"*63"*55" 5m*1.6m*1.4m | 8.5KW |
MEDIUM | PCM-6040 | 24" 600mm | 157.5" 4000mm | 236"*70"*59" 6m*1.7m*1.5m | 8.5KW |
STANDARD | PCM-8040 | 31.5" 800mm | 157.5" 4000mm | 236"*71"*63" 6m*1.8m*1.6m | 11.9KW |
HEAVY DUTY | PCM-1250 | 47.2" 1200mm | 196.9" 5000mm | 307"*79"*63" 7.8m*2.0m*1.7m | 19KW |
LARGE SCALE | PCM-1660 | 63" 1600mm | 236.2" 6000mm | 339"*102"*71" 8.6m*2.6m*1.8m | 23KW |

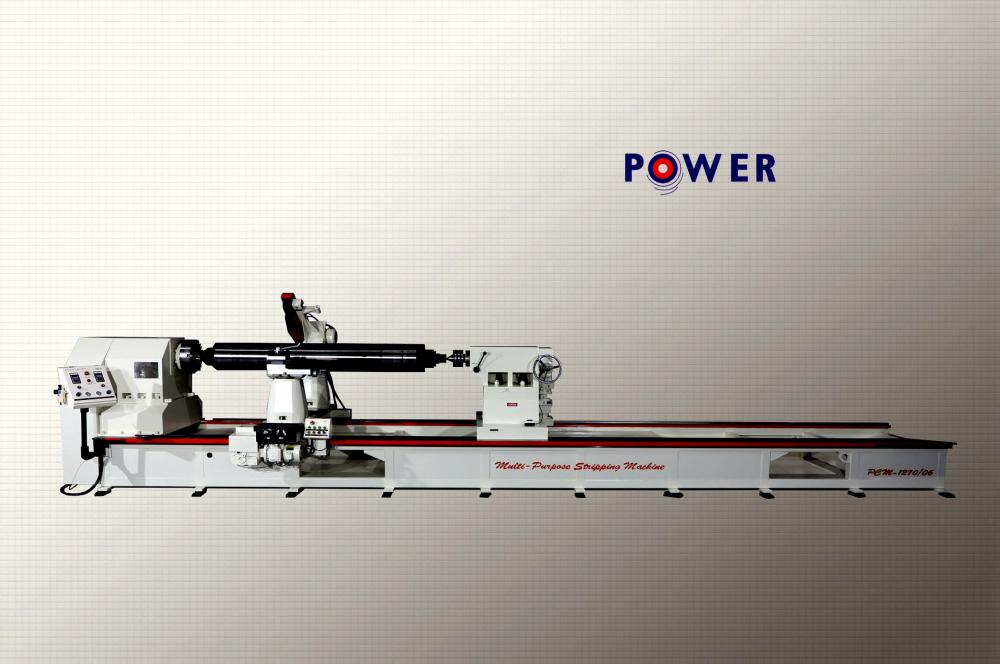

PCM Multi-Purpose Stripping Machine is specially researched, developed and designed for treating old Rubber Rollers. PCM Multi-purpose Stripping Machine has the advantages that: Old rubber can be quickly removed by a special ring cutter, a roller core would have a brand-new surface under the special belt grinding mode. Adhesive brushing and drying are facilitated, bonding of rubber and the roller core is ensured, which replaced the traditional sand blasting process. After the belt grinding process, the surface is not required to be cleaned by any solvent, the balance of the roller core is prevented from being damaged. Therefore, production efficiency will be improved, cost and labor will be saved. Most importantly, the bonding of the rubber and the roller core will be secured by this procedure.
Packaging & Shipping
Packing details:
1. Outside package: Standard export wooden cases
2. Inner package: Stretch film
Delivery time:
Within 2-4 weeks
