Customized Rubber Roller Strip Cleaning Machine

Payment Type:    L/C,T/T,Money Gram,Western Union

Incoterm:          FOB,CFR,CIF

Min. Order:         1 Set/Sets

Delivery Time:    30 Days

Transportation:   Ocean


  Contact Now
Product Details

Product description

1. The PCM-1250 model is suitable for renewing Industrial Rubber Rollers.

2. Removing old rubber by special ring cutter.

3. Replacing the traditional sand-blasting and solvent washing process by advanced belt-grinding process.

4. Perfectly keeping the original dynamic balance of the roller core.

5. Giving more reliable guarantee for the bonding of the rubber and steel cores.

6. Saving costs and labors with this improved production system.

 Rubber Roller Strip Cleaning Machine


MODEL
SPECIFICATION
MAX. DIAMETER
MAX. LENGTH
CUBAGE
POWER
LIGHT SCALE
PCM-4030
15.7"
400mm
118"
3000mm
197"*63"*55"
5m*1.6m*1.4m
8.5KW
MEDIUM
PCM-6040
24"
600mm
157.5"
4000mm
236"*70"*59"
6m*1.7m*1.5m
8.5KW
STANDARD
PCM-8040
31.5"
800mm
157.5"
4000mm
236"*71"*63"
6m*1.8m*1.6m
11.9KW
HEAVY DUTY
PCM-1250
47.2"
1200mm
196.9"
5000mm
307"*79"*63"
7.8m*2.0m*1.7m
19KW
LARGE SCALE
PCM-1660
63"
1600mm
236.2"
6000mm
339"*102"*71"
8.6m*2.6m*1.8m
23KW

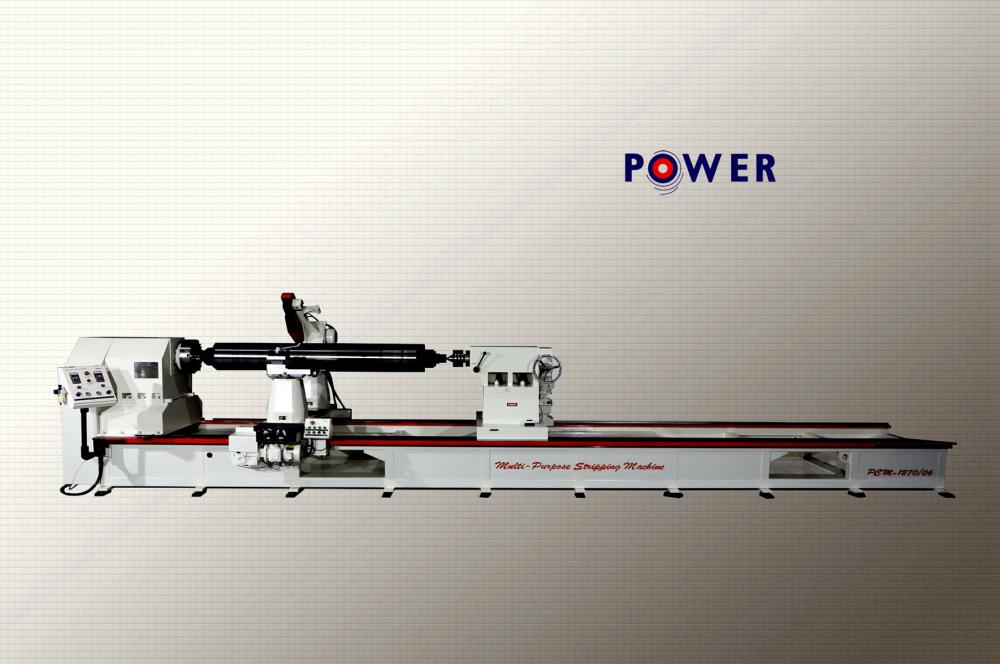

PCM Multi-Purpose Stripping Machine is specially researched, developed and designed for treating old Rubber Rollers. PCM Multi-purpose Stripping Machine has the advantages that: Old rubber can be quickly removed by a special ring cutter, a roller core would have a brand-new surface under the special belt grinding mode. Adhesive brushing and drying are facilitated, bonding of rubber and the roller core is ensured, which replaced the traditional sand blasting process. After the belt grinding process, the surface is not required to be cleaned by any solvent, the balance of the roller core is prevented from being damaged. Therefore, production efficiency will be improved, cost and labor will be saved. Most importantly, the bonding of the rubber and the roller core will be secured by this procedure.


Packaging & Shipping

Packing details:

1. Outside package: Standard export wooden cases

2. Inner package: Stretch film

Delivery time:

Within 2-4 weeks



Our Services:

1. Installation service.

2. Maintenance service.

3. Technical support online service provided.

4. Technical files service provided.

5. On-site training service provided.

6. Spare parts replacement and repair service provided.


Equipment video:


Shipping photos :





Product form
