Rubber Roller CNC Grinding Machine

Payment Type: L/C,T/T,Money Gram,Western Union

Incoterm: FOB,CFR,CIF,EXW

Min. Order: 1 Set/Sets

Delivery Time: 40 Days

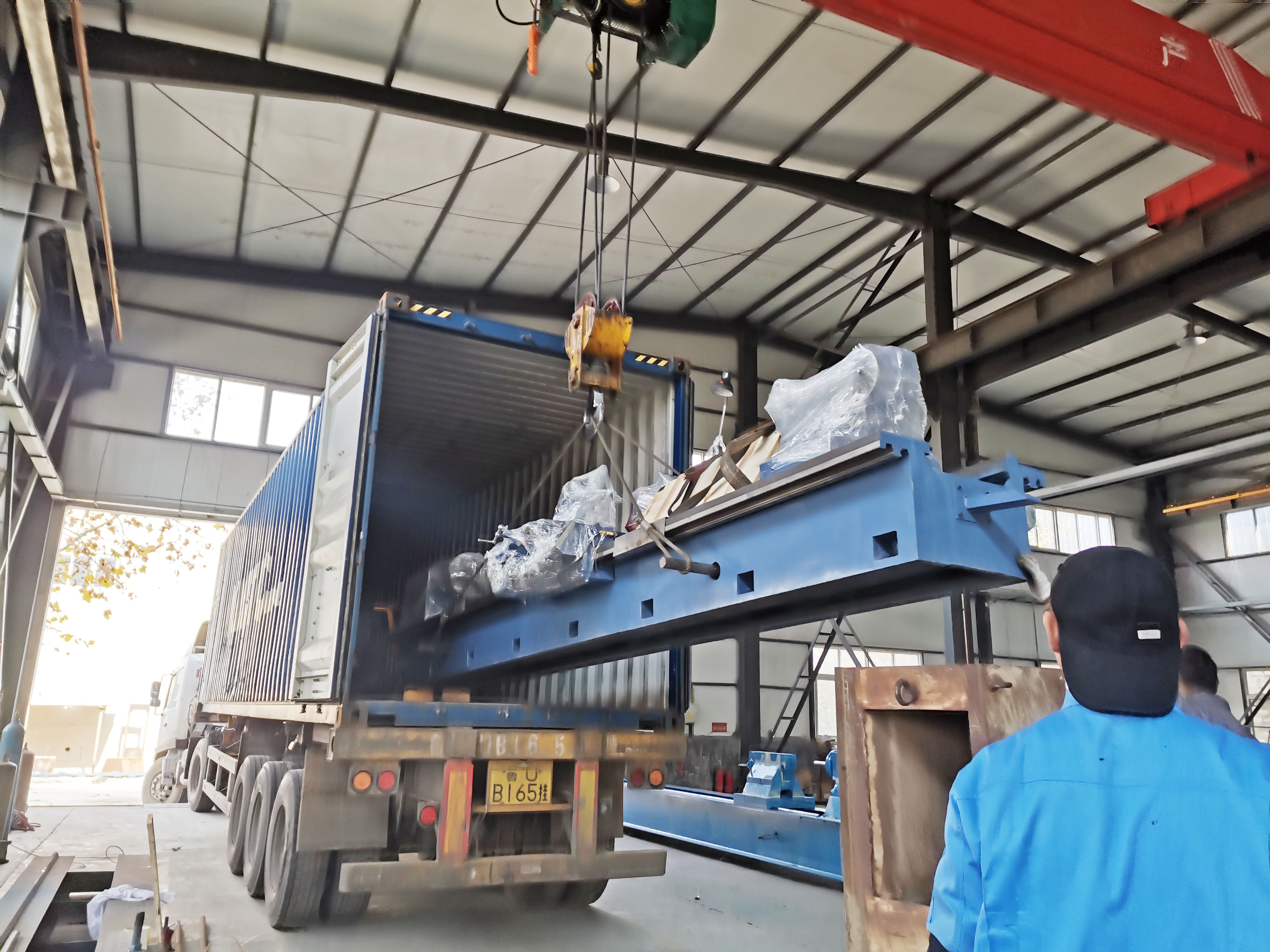

Transportation: Ocean

Product Details

Due to the all-round of the system function, factory customized rubber roller groover can make almost all the profile of rollers. For instance, parabolic crowning and concave, cosine crowning and concave, circular, cone, coarse pitch, herringbone, diamond, straight groove, horizontal groove and other formations in the appended drawing.

1. Factory customized rubber roller groover has our own developed user-friendly CNC operating system.

2. The latest CNC system can easily operate more than 35 shapes on the rubber roller surface, which includes: crowning, concave,and wave grindings; herringbone, diamond, straight groovings, etc.

3. Remote problem solving function availabe.

4. Having all the functions of our PSM series general grinding machine.

35 Program

The feature of PSM series Jinan Rubber Roller CNC Roll Grinding Machine

1. Standard equipment of PSM series includes:
a. a full flood recirculating coolant system
b. motorized tailstock
c. variable speed traverse and spindle drives
d. front and rear independently operated carriage tables
e. a direct drive grinding head mounted on the rear
2. Specially designed to replace the tradtional roller grinding process method.
3. Two medium carriage tables assembled to ensure accurate performance and operating stability.
4. The max. linear speed of grinding head is over 90m/s. Production efficiency is highly increased and the geometric size is guaranteed.
5. Advanced measuring device assembled timely checks the processing datas and provides effective help to control the grinding size.
6. Capable of realizing expansion of processing of special-shaped rubber rollers.

MODEL	SPECIFICATION	MAX. DIAMETER	MAX. LENGTH	CUBAGE	POWER
LIGHT SCALE	PSM-4020-CNC	16" 400mm	80" 2000mm	158"63"55" 4m1.6m1.4m	17KW
STANDARD	PSM-8040-CNC	32" 800mm	158" 4000mm	256"71"63" 6.5m1.8m1.6m	22KW
HEAVY DUTY	PSM-1260-CNC	47" 1200mm	236" 6000mm	315"79"71" 8.0m2.0m1.8m	26KW
LARGE SCALE	PSM-1680-CNC	63" 1600mm	315" 8000mm	433"95"71" 11m2.4m1.8m	32KW
