Rubber Roller Surface Polishing Machine PPM-6040

Payment Type: L/C,T/T,Money Gram,Western Union

Incoterm: FOB,CFR,CIF,EXW

Min. Order: 1 Set/Sets

Delivery Time: 30 Days

Transportation: Ocean

Contact Now

Product Details

Product description

1. this gadget is designed as a follow up device of our psm collection for the rubber roller floor refining device.

2. assembly critical requirements on the ground smoothness thru selecting the abrasive band with specific granularity.

3. the geometric length of rubber roller will stay unchanged.

Four. the running device is simple and smooth-to-use.

MODEL	SPECIFICATION	MAX. DIAMETER	MAX. LENGTH	CUBAGE	POWER
SMALL	PPM-2016	7.8" 200mm	63" 1600mm	118"55"55" 3.0m1.4m1.4m	1.5KW
MEDIUM	PPM-2020	7.8" 200mm	78" 2000mm	118"55"55" 3.0m1.4m1.4m	2.2KW
MEDIUM	PPM-2026	7.8" 200mm	103" 2600mm	158"55"55" 4.0m1.4m1.4m	2.2KW
STANDARD	PPM-3030	12" 300mm	118" 3000mm	177"95"71" 4.5m2.4m1.8m	3.0KW
STANDARD	PPM-3036	12" 300mm	142" 3600mm	1979571" 5.0m2.4m1.8m	3.0KW
HEAVY DUTY	PPM-4036	16" 400mm	142" 3600mm	197"95"71" 5.0m2.4m1.8m	3.7KW
HEAVY DUTY	PPM-6040	24" 600mm	158" 4000mm	237"95"71" 6.0m2.4m1.8m	4.0KW

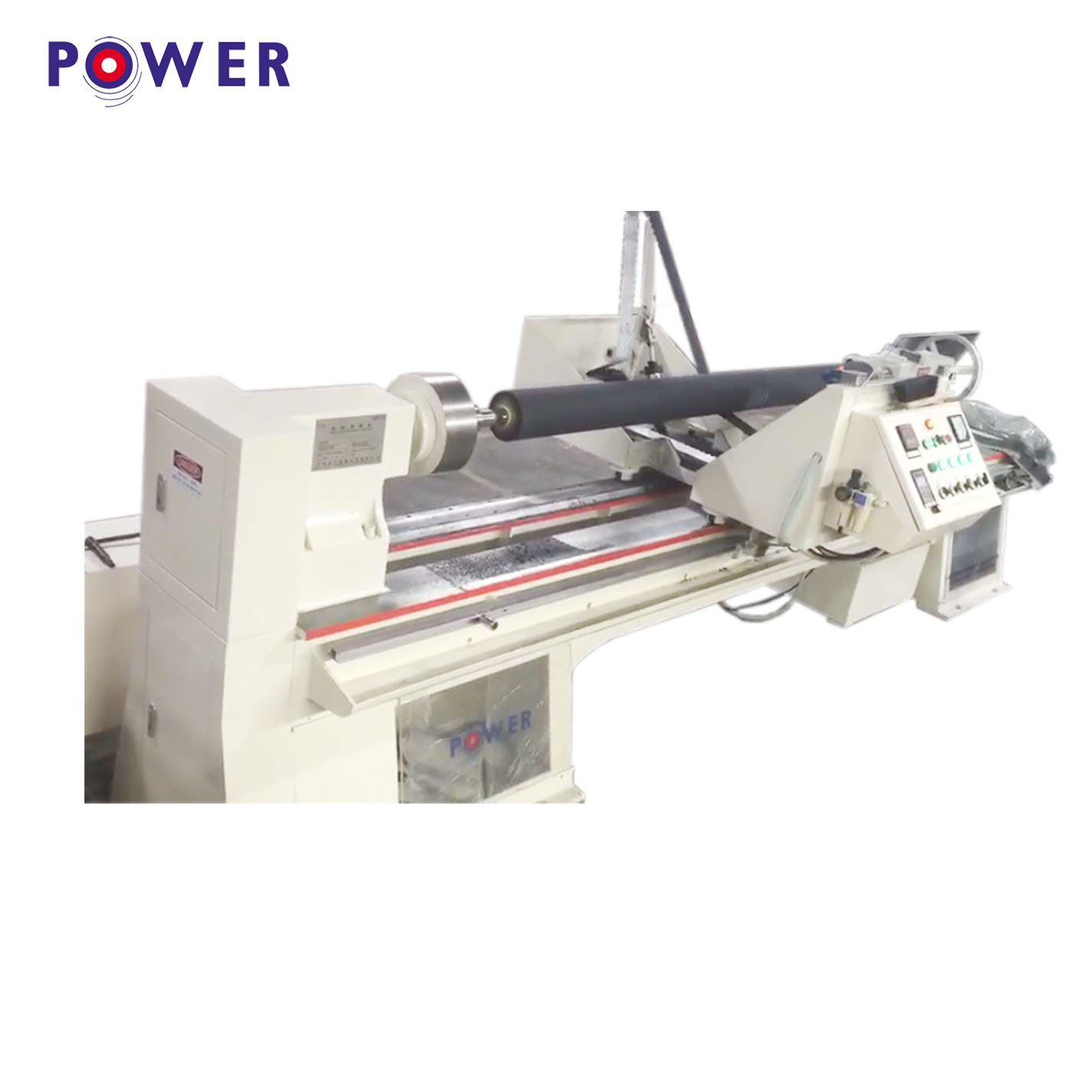

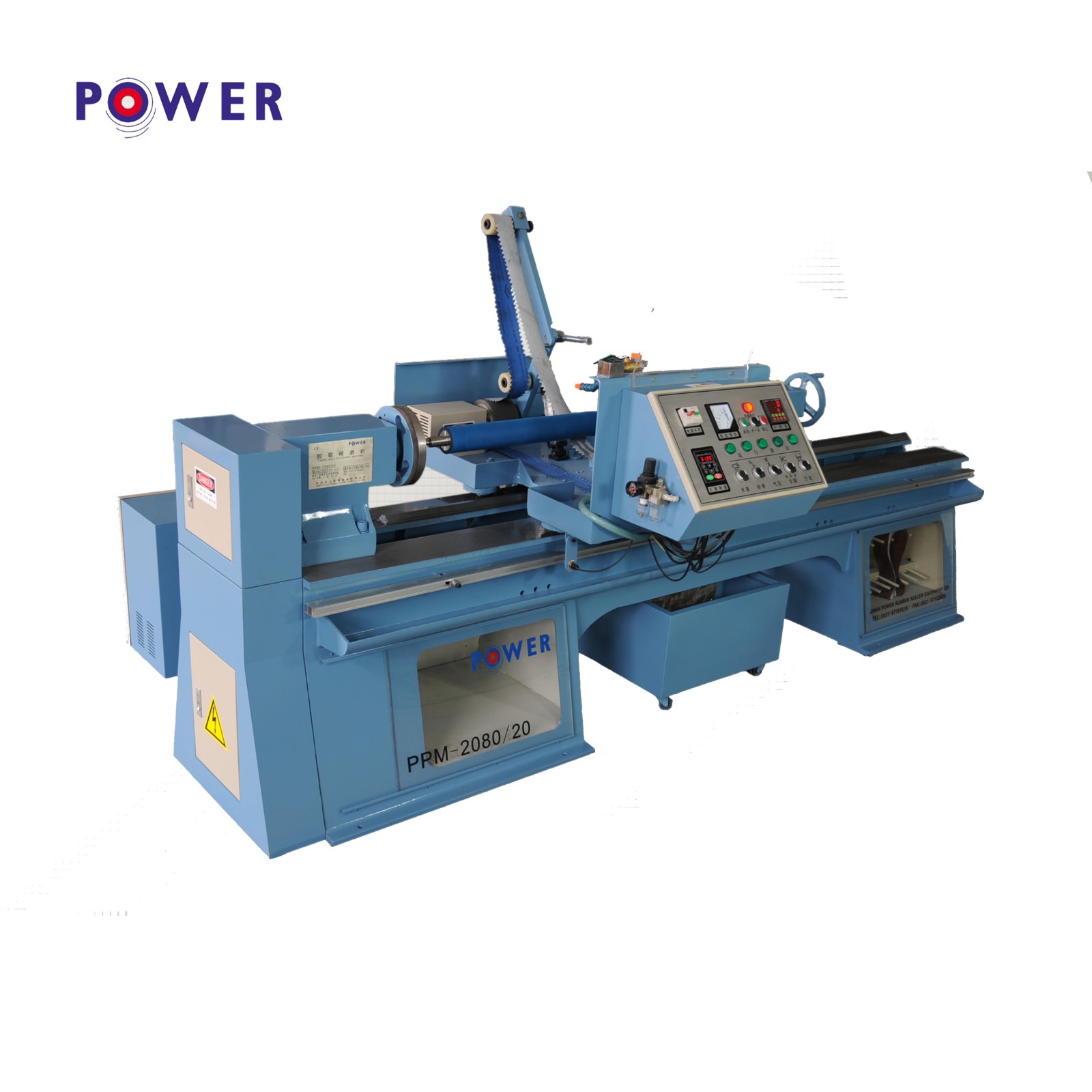

PPM Series Rubber Roller Polishing Machine is an important equipment for the rubber roller refining processe. The Polishing machine is the ideal finish processing equipment for the high-end printing rubber rollers, and rollers with a high requirement on their surface. By choosing different grit size of the grinding belts, it can reaches different requirements on the surface smoothness.

Packaging & Shipping

Packing details:

1. Outside package: Standard export wooden cases

2. Inner package: Stretch film
