Used Lab Rubber Mixing Mill (Double Output)

Product Feature:

1. Compact construction

2. Made of high quality material

3. Easy installation directly on plain ground

4. Low noise & safety


  Contact Now
Product Details




Product Description:

1. Enhance the intensity of the machine body by using more carbon steel and less wrought iron.

2. Machine can be placed on the plain ground directly, other installation method is unnecessary.

3. The roller bearing supports the heavy loading and high temperature. Using roll bearing double the size and use less lubrication oil, able to use longer and easy to maintain.

4. All the parts of the machine are processed by rust proofing with chromium, to prevent the key parts polluted.

5. Pressurized cooling rotating joint

6. Emergency stop adopts press button brake



Model

φ6"

φ8"

Roll Size (D/L)

160*430

200*530

Front Roll RPM

0-20(big)

0-18.6

Roll Ratio (Front/Back)

Free Adjustment

Free Adjustment

Produce Weight(Once)

3-4 KG

5-6 KG

Motor Power

3.75KW X 2 Sets*

5.5KW X 2 Sets*

Weight (KG)

1100

2200

Dimensions (LXWXH)

2000*1000*1500

2450*1100*1250

Bush

Bearing Type

Bearing Type

Receiver Material

Stainless Steel

Stainless Steel

Cooling Mode

Pressurized Cooling Rotating Joint

Emergency Stop

Press Button Brake

Transmission

Planetary Reducer Gear Box

* Motor Power can be customized by different material requirements.



Application:

Suitable for laboratory use to prepare plastic compound, mix rubber or conduct hot refining and molding.


Services:

1. On-site Installation service can be selected.

2. Maintenance service for life long.

3. Online support is valid.

4. Technical files will be provided.

5. Training service can be provided.

6. Spare parts replacement and repair service can be provided.


Packaging & Shipping

Packing details:

1. Outside package: Standard export wooden cases

2. Inner package: Stretch film


Shipping detail:

Within 2-4 weeks


Equipment video:

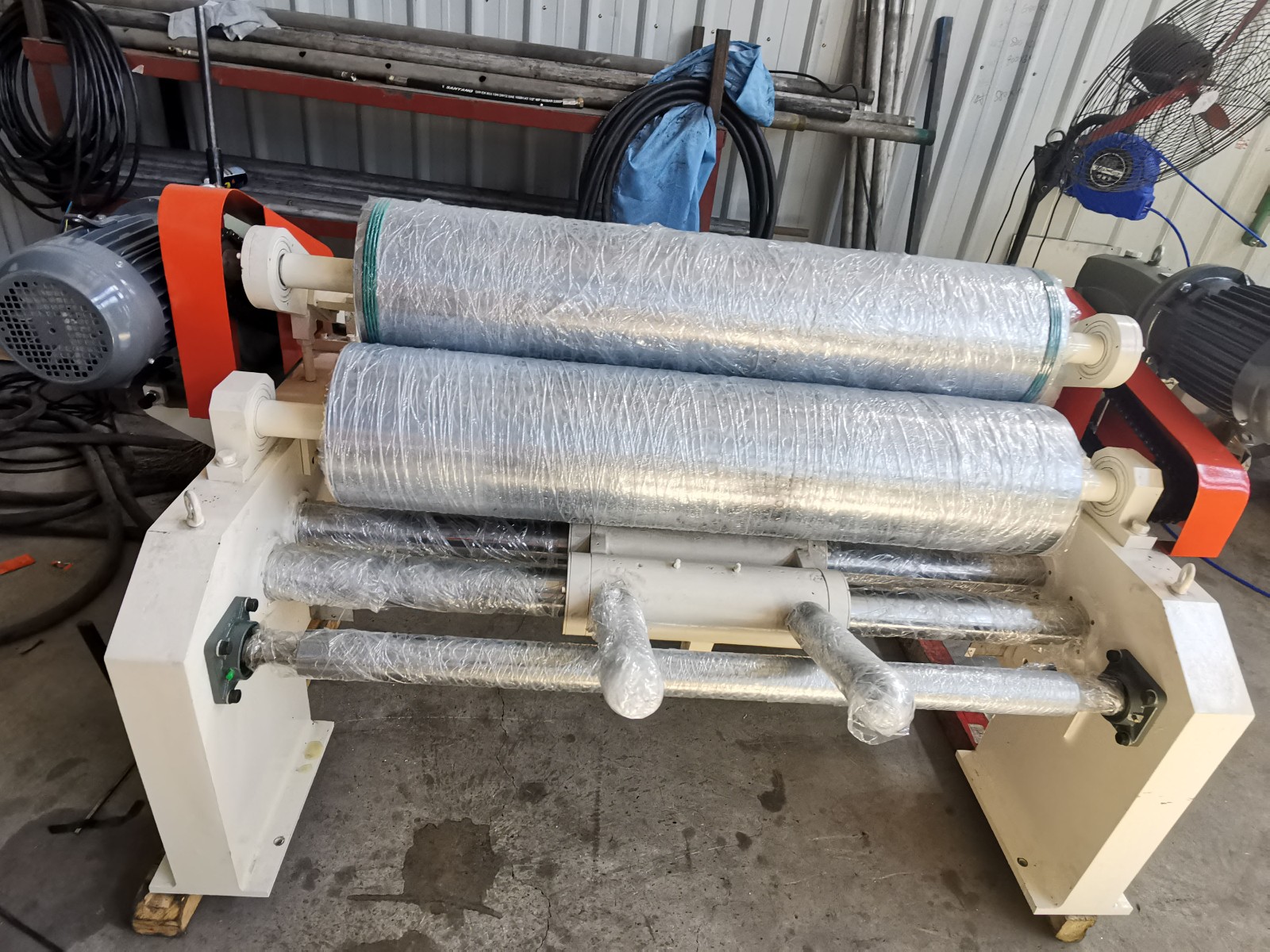

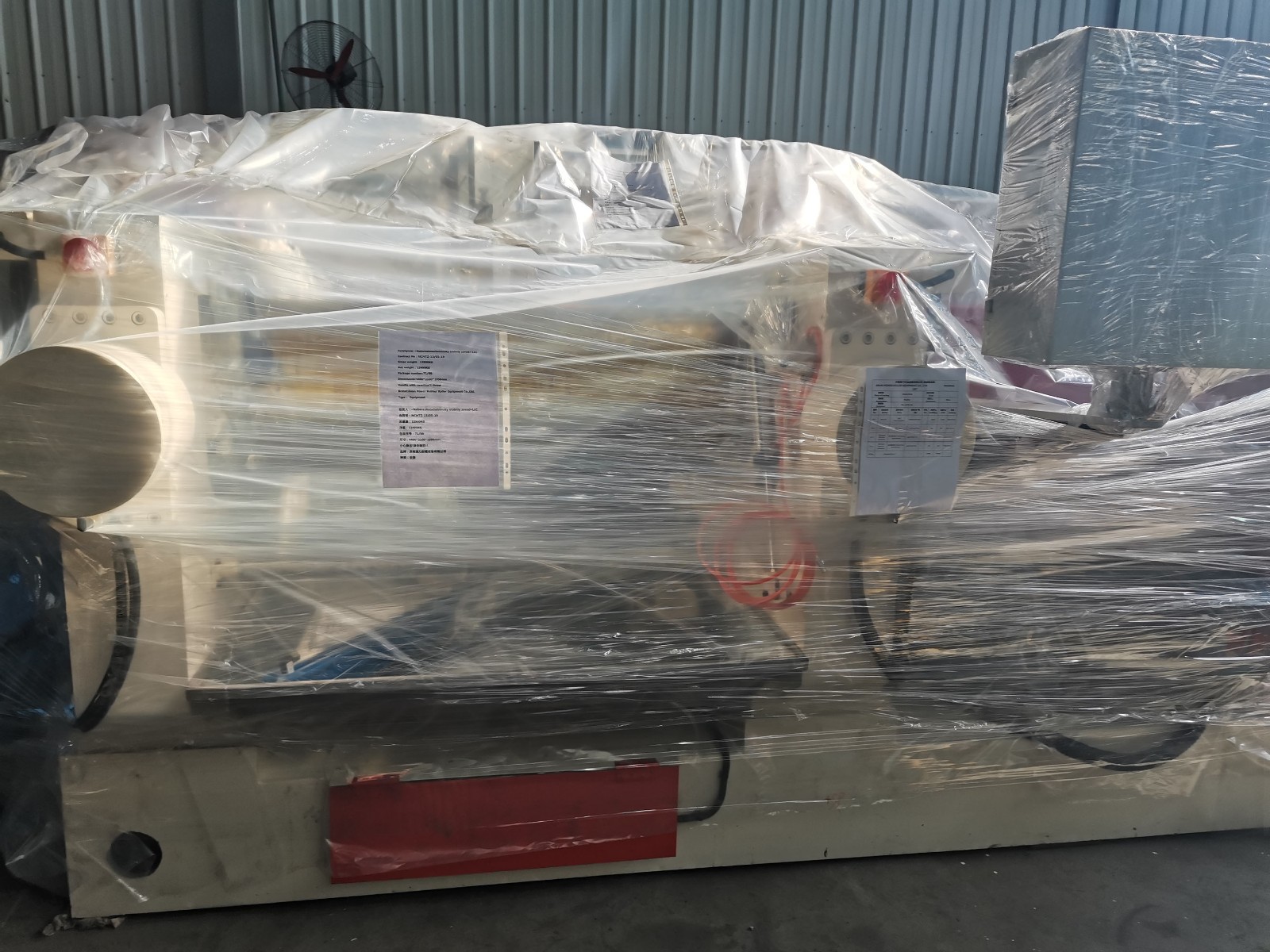

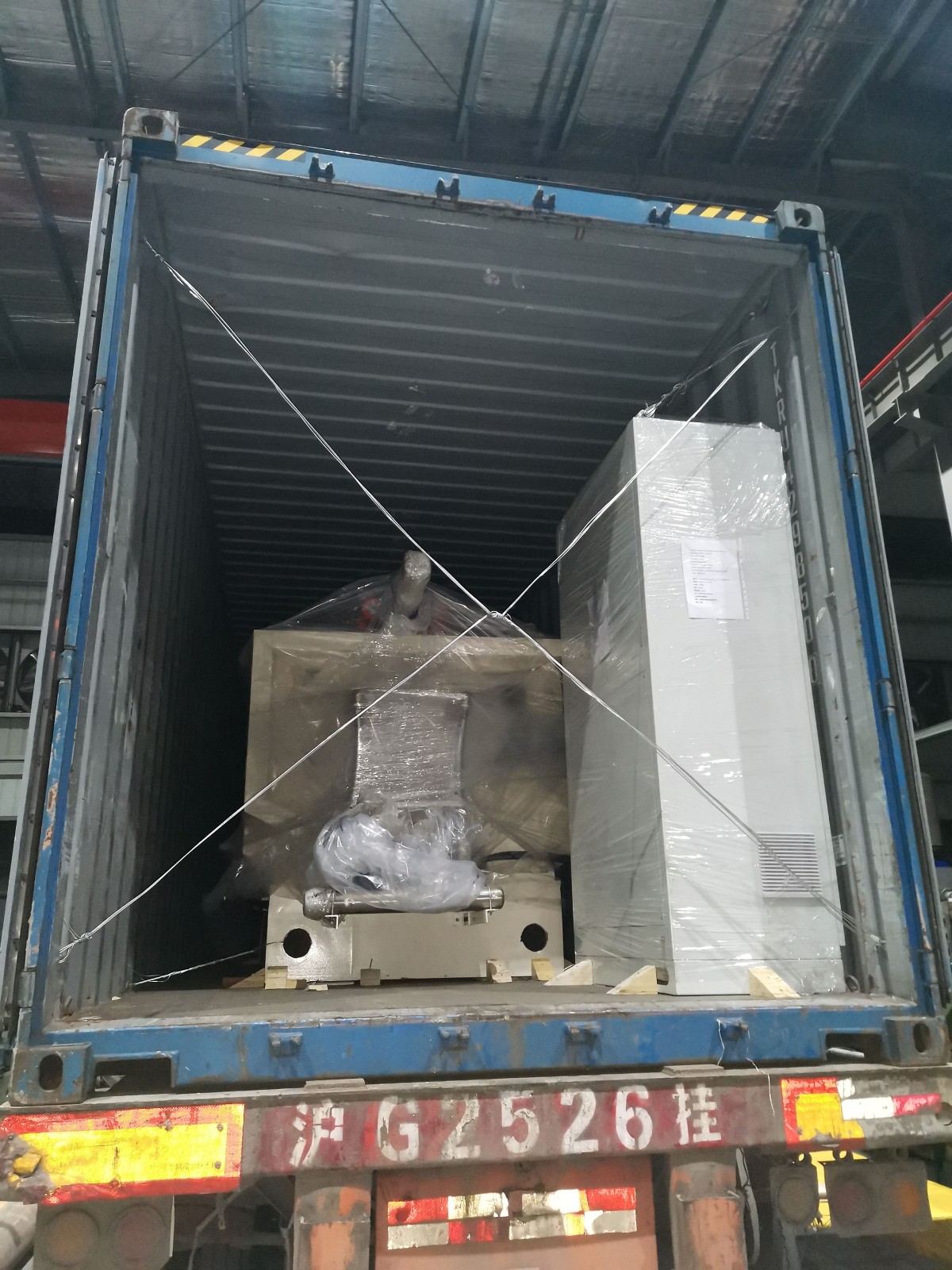

Shipping photos and video:





Product form
