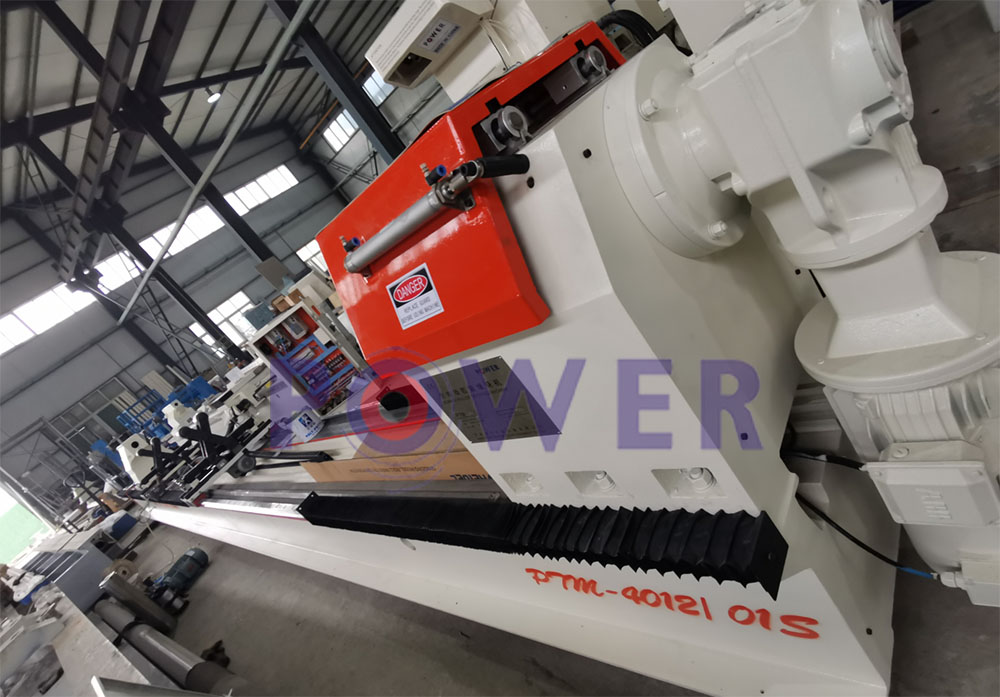

PCM Multi-Purpose Stripping Machine

2022/12/14 14:04

PCM Multi-Purpose Stripping Machine is particularly researched, developed and designed for treating old Rubber Rollers. PCM Multi-purpose Stripping Machine has the benefits that: Old rubber can be quickly eliminated by a distinct ring cutter, a roller core would have a brand-new floor under the distinct belt grinding mode. Adhesive brushing and drying are facilitated, bonding of rubber and the roller core is ensured, which changed the traditional sand blasting process. After the belt grinding process, the floor is not required to be cleaned by means of any solvent, the balance of the curler core is prevented from being damaged. Therefore, manufacturing efficiency will be improved, price and labor will be saved. Most importantly, the bonding of the rubber and the roller core will be secured by way of this procedure.

PCM Multi-Purpose Stripping Machine


MODEL
SPECIFICATION
MAX. DIAMETER
MAX. LENGTH
CUBAGE
POWER
LIGHT SCALE
PCM-4030
15.7"
400mm
118"
3000mm
197"*63"*55"
5m*1.6m*1.4m
8.5KW
MEDIUM
PCM-6040
24"
600mm
157.5"
4000mm
236"*70"*59"
6m*1.7m*1.5m
8.5KW
STANDARD
PCM-8040
31.5"
800mm
157.5"
4000mm
236"*71"*63"
6m*1.8m*1.6m
11.9KW
HEAVY DUTY
PCM-1250
47.2"
1200mm
196.9"
5000mm
307"*79"*63"
7.8m*2.0m*1.7m
19KW
LARGE SCALE
PCM-1660
63"
1600mm
236.2"
6000mm
339"*102"*71"
8.6m*2.6m*1.8m
23KW
